Install Ubuntu on an old iMac

Table of Contents

Saving the iMac from the landfill

Same friend that gave me the Xbox 360 also had an old iMac (Late 2012) which fell down and broke the screen. He was about to throw it away, but I thought it could be a nice addition to my homelab. I asked him if I could take it home and he agreed.

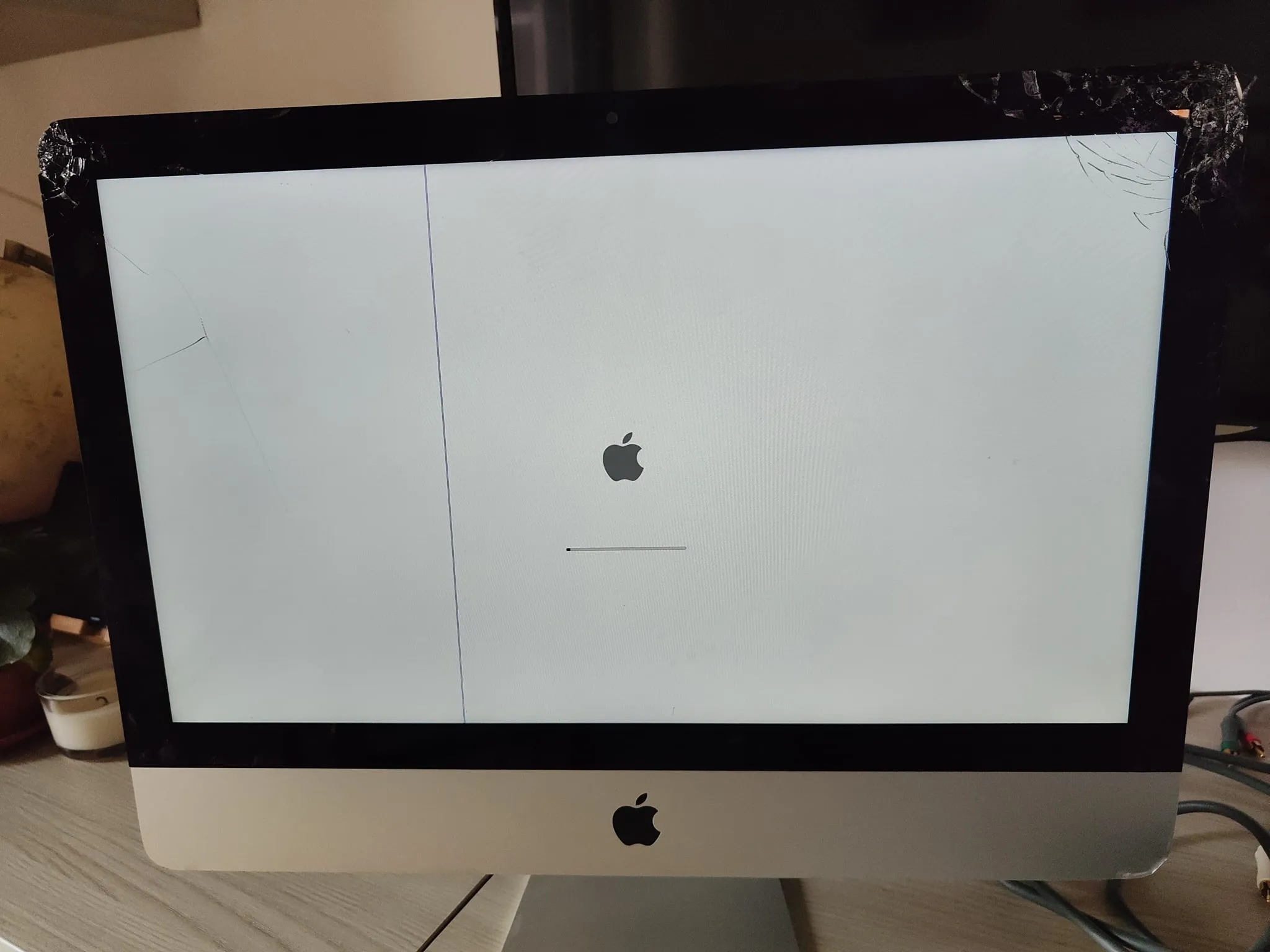

iMac with broken screen

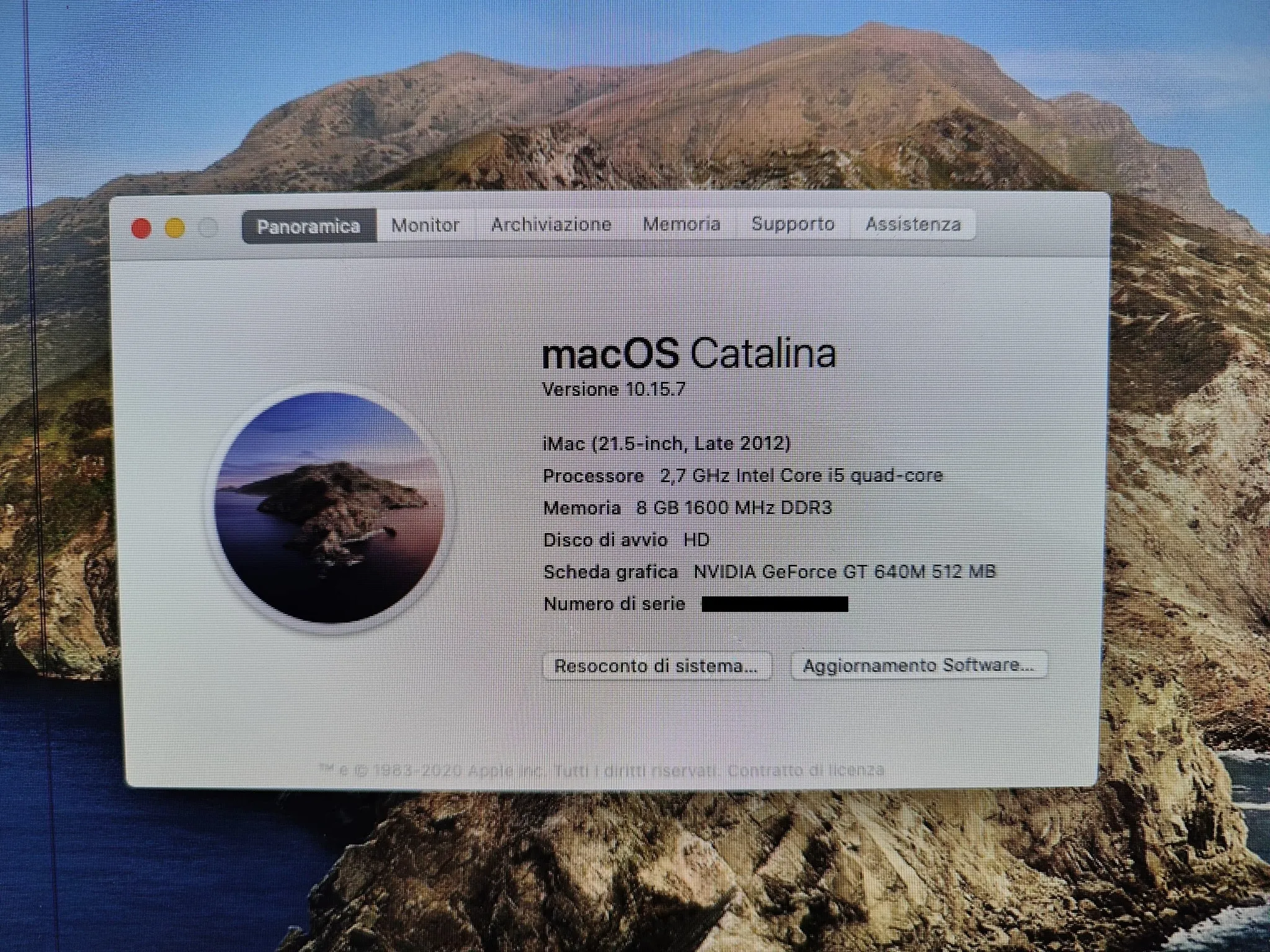

iMac specs

The plan

The iMac is a bit old, but it has decent specs. So I thought, better not to break it. But the desire to open it and see what’s inside was too strong. Following some tutorials, I managed to open it up and remove the broken screen

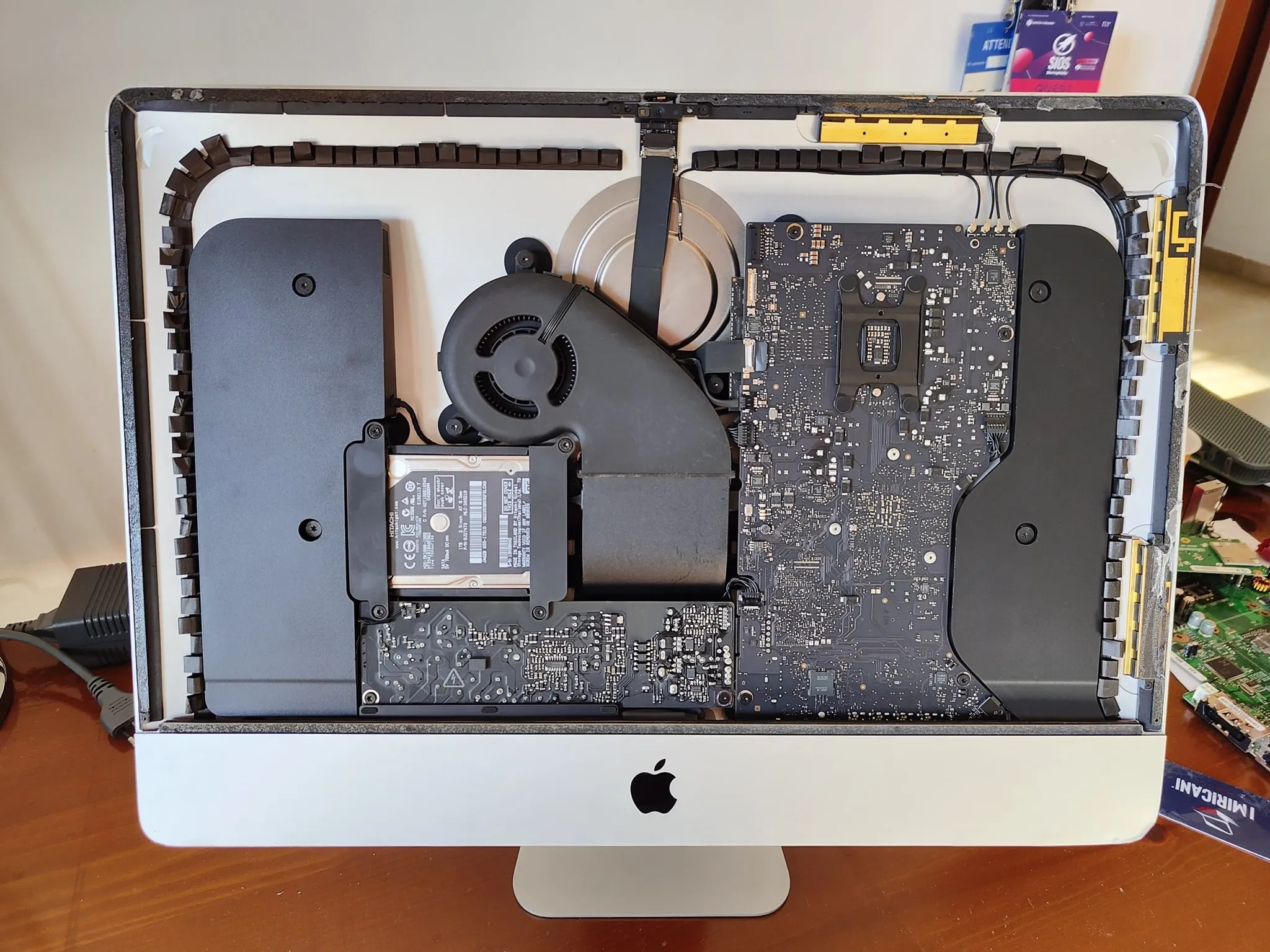

iMac open

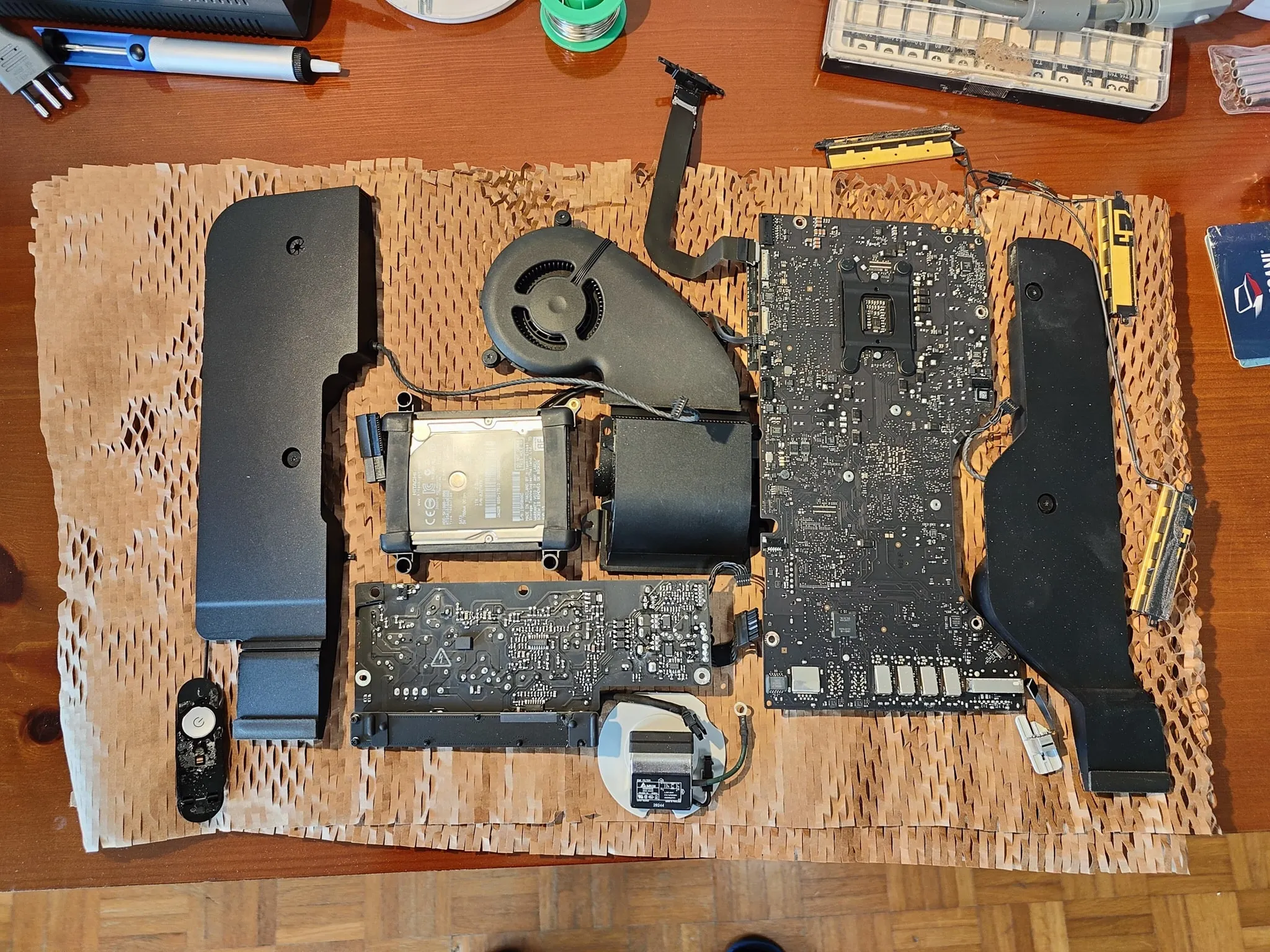

plus all the other components.

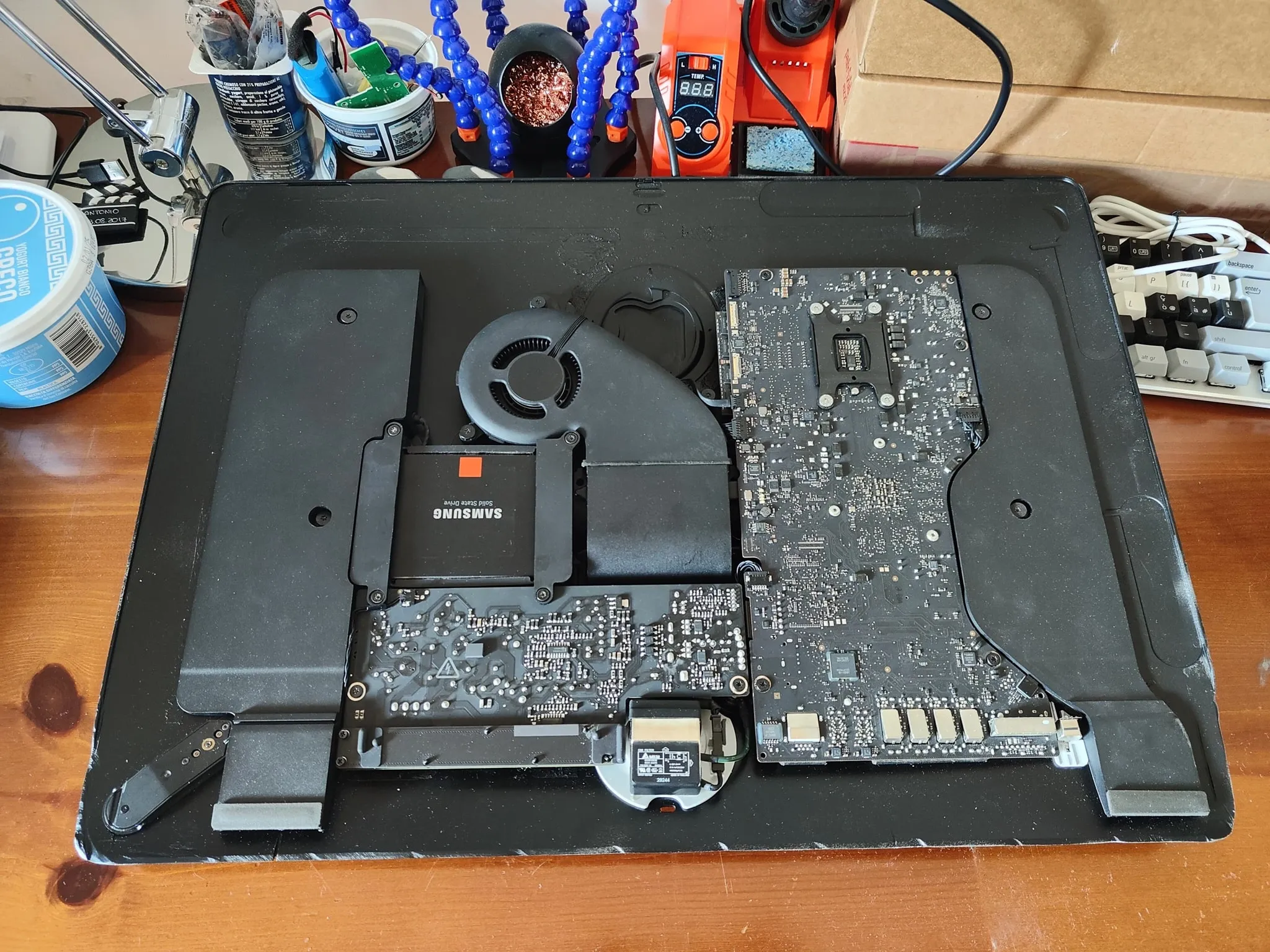

iMac open

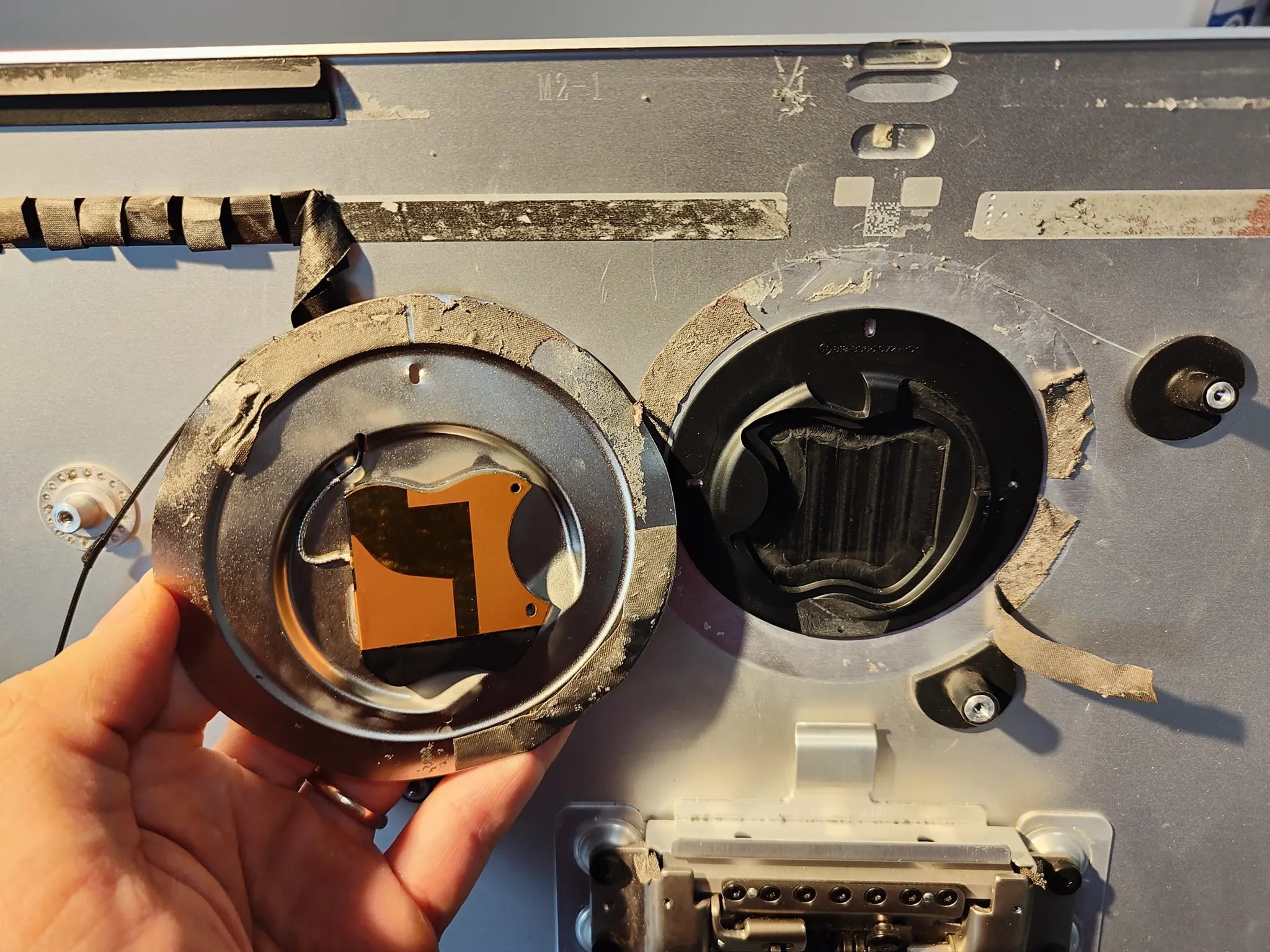

Funny note, one of the Wi-Fi antennas has the shape of an apple

iMac open

After some cleaning, I painted the iMac with a black spray paint, reassembled it, and now it’s time to install Ubuntu.

iMac open

Installing Ubuntu

I downloaded the latest version of Ubuntu Server and used Rufus to create a bootable USB stick. I plugged it into one of the USB ports on the back, tuned the iMac on and hold down the Option key. This showed the boot menu with 3 options:

  • EFI Boot
  • Windows
  • Macintosh HD

The USB was recognized as both EFI Boot and Windows. You can pick both and the installation will proceed without issues. But only EFI Boot worked 100%. The Windows one didn’t boot after installation was completed.

Once Ubuntu was installed and booted, I realized 2 things:

  • the fan was running constantly at full speed
  • the screen had some weird colors

I solved the fan issue by first installing lm-sensors (thanks StackOverflow) and then mbpfan.

I still have to figure out the “purple screen issue”, but it’s not a big deal, because I’m gonna used it mostly through SSH. Ah right, The ethernet adapted worked out of the box.

Conclusion

As usual, it is always an incredible feeling when you save something from the landfill. I’m planning to run some services on this iMac to experiment with Docker and Kubernetes. The last thing to figure out is where to place it. Due to its shape, it doesn’t fit anywhere. I might hang it on a wall as it was a picture frame. We’ll see how it goes. Cheers!
